Size 40 Submersible Single-turn and Geared Single-turn

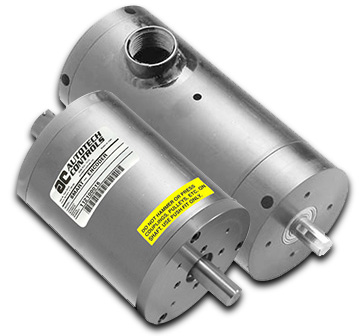

Submersible, Stainless Steel Resolver

Autotech’s SAS-RL100 resolver is NEMA 6P compliant for operation in submersible depths of up to 100 feet. It is chemically resistant to a wide variety of solvents, hydrocarbons, water, and sea water. The housing and all fasteners are 316 stainless steel.

Submersible Size 40 (4.0" diameter) Submersible Resolvers are applicable in mining, off-shore drilling, gate monitoring (dams, locks, etc), and hydro-electric operations.

Part Numbers

Size 40 Submersible Single-turn Resolver
Size 40 = 4.0" (101.6 mm) diameter housing
SAS-RL100-x1M11 Submersible, brushless resolver, single-turn, NEMA 6P, with MS connector, 5/8" (15.88 mm) shaft dia.
x1 = Face Plate
              S: Square Face Plate
              R: Round Face Plate
Substitute “0” in SAS-RL100-X1 M11 with “2” for higher accuracy resolver.
Note: Must use with submersible cables

Size 40 Submersible Geared Single-Turn Brushless Resolver
Size 40 = 4.0" (101.6 mm) diameter housing

SAS-RL100-Gx1 x2

Submersible, brushless resolver, geared, single-turn, NEMA 6P, with MS connector, 5/8" (15.88 mm) shaft dia. with built-in gear train
x1 = Face Plate
              S: Square Face Plate
              R: Round Face Plate
x2 = Gear Ratio Standard Ratios:
002: 2:1 Gear Ratio
003: 3:1 Gear Ratio
004: 4:1 Gear Ratio
008: 8:1 Gear Ratio
012: 12:1 Gear Ratio
016: 16:1 Gear Ratio
020: 20:1 Gear Ratio
024: 24:1 Gear Ratio
032: 32:1 Gear Ratio
040: 40:1 Gear Ratio
048: 48:1 Gear Ratio
060: 60:1 Gear Ratio
064: 64:1 Gear Ratio
080: 80:1 Gear Ratio
Note: Substitute 0 in SAS-RL100-xxxxx with 2 for higher accuracy resolver
Note: Use with submersible cables

Specifications

Electrical

Frequency: 2250 Hz
Input voltage: 1.88 V
Input current: 6 mA
Input power: 6.5 mW watts
Rotor impedence with stator
Open circuit ZL0: 180+ j256 ohms
DC resistance (Rotor): 18.3 ohms
Output voltage (Stator): 2.63 V +/- 5%
Transformation ratio: 1.400

Mechanical

Resolver SAS-RL101-RM11
Housing Size Size 40, Submersible
(4.0² dia.) (316 SS)
Max. Stating Torque @ 25 deg. C (oz-in) 8
Moment of Inertia
(gm/cm2)
45
Max. Slew Speed (RPM): 100
Shaft Size 5/8" (316 SS)
Max. Shaft Loading:
Axial (lbs):
Radial (lbs):

50
100
Bearing life at Max.
Mfr. Spec. (Rev.)
2x109
Approx. Weight (lbs): 11

Environmental

Shock 200g for 11 mSec
Vibration 20g to 2000 Hz
Operating Temperature 29 to 100° F
Storage Temperature -20 to 180° F
Enclosure NEMA 6P
Special Features Submerged Working Depth = 100 Ft. Chemically resistant to wide variety of solvents, hydrocarbons, water, and sea water.

For ordering information or sales/technical support, call 1-800-832-3647 or email us at support.auto@avg.net.
