TOUCH·PLS SPECIFICATIONS

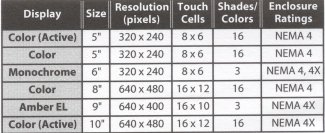

Power Requirements:
     5 " Color and 6" Models:  24 VDC @ 18 W
     8 " Color Model:  24 VDC, 24 W
     9 " Amber EL Model:  115/230 VAC <40 VA or 24 VDC
          <40 VA
     10" Color model:  120 VAC ±1 0%, 50‑60 Hz, @ I A or
          24 VDC @ 1.25 A
Operating Temperature:
     5 " Models:  32 to 122°F (0 to 50°C)
     6 " and 8 " Models:  32 to 104°F (0 to 40°C)
     9 " Model:  32 to 140°F (0 to 60°C)
     10 " Model:  32 to 113°F (0 to 45°C)
Position Resolution:  1 part in 1,000 (consult factory for
     higher resolution)
Update Time:  1.5 msec

PROGRAMMABLE PARAMETERS:
Scale Factor:  Programmable from 16 to 999, common to
     all PLS setup
Position Off-set:  Programmable to full scale factor value,
     common to all PLS setup
Number of PLS ON/OFF Setpoints:  112 per PLS setup
Number of PLS Setups:  32
Speed Compensation:  Leading and Trailing edge,
     programmable in scale factor units per 100 RPM, up to
     full­scale factor value. Each PLS output (channel) has its
     own speed compensation
Motion Detector:  LOW and HIGH motion limits, common
     to all PLS setups, programmable from 0-999 RPM
Brake Monitor:  Caution and Danger Limit, Stopping time
     9.99 sec. max.
Number of PLS outputs:  16
Dynamic Zero or ModZ Input or Brake Input:
     Modification Zero on the fly with an external input (edge
     triggered) or brake input
Serial Communication:  Via RS-485A port
Broken Resolver Wire Detection:  Indication for broken
     wire in 1/0 Status

RESOLVER INTERFACE:
Position Transducer:  Resolver, AVG Automation Series
     RLI 00, RL101, E7R, and E8R.
Resolver Cable:  CBL-1OT22-CXXX or CBL-1OT22-MXXX
Resolver Decoder:  Ratiometric, tracks resolver shaft angle
     up to 1,800 RPM.
Cable Length:  2,500 ft. max., shielded, twisted-pair.

INPUTS/OUTPUTS:
Electrical Specifications:
     I/O Power Input: 20 to 30 VDC @ 100 mA + user's loads
N-Channel Sinking I/O
Output Logic Levels:
     Logic TRUE:  MOSFET ON, 0.2 V Max. @ 100 mA
     Logic FALSE:  MOSFET OFF, 0.05 mA leakage @ 30 V
     Max. Current per Output:  600 mA
     Max. Current per Card:  2 A
      Output Isolation:  1,500 V
Input Logic Levels:
     Logic FALSE:  6-30 VDC
     Logic TRUE:  0-1.5 VDC
Input Isolation:  1,500 V

P-Channel Sourcing I/O
Output Logic Levels:
     Logic TRUE:  MOSFET ON, 0.5 V Drop @ 100 mA
     Logic FALSE:  MOSFET OFF, 0.05 mA leakage @ 30 V
     Max. Current per Output:  600 MA
     Max. Current per Card:  2 A
     Output Isolation:  1,500V
Input Logic Levels:
     Logic TRUE:  6-30 VDC
     Logic FALSE:  0-1.5VDC
     Input Isolation:  1,500 V
