SAC-RL100 Specifications

Electrical

Frequency: 2250 Hz
Input voltage: 1.88 V
Input current: 6 mA
Input power: 6.5 mW watts
Rotor impedence with stator
Open circuit ZL0: 180+ j256 ohms
DC resistance (Rotor): 18.3 ohms
Output voltage (Stator): 2.63 V +/- 5%
Transformation ratio: 1.400

Mechanical
Resolver SAC-RL100
SAC-RL210
Housing Size Size 40
(4.0² dia.)
Max. Stating Torque @ 25 deg. C (oz-in) 8
Moment of Inertia
(gm/cm2)		 45
Max. Slew Speed (RPM): 5000
Shaft Size 5/8"
Max. Shaft Loading:
Axial (lbs):
Radial (lbs):
50
100
Bearing life at Max.
Mfr. Spec. (Rev.)		 2x109
Approx. Weight (lbs): 6

Environmental
Shock 200g for 11 mSec.
Vibration 20g to 2000Hz
Operating Temperature -67 to 248° F
Storage Temperature -85 to 302° F
Enclosure NEMA 13

SAC-RL100 Resolvers Manufactured
by Autotech Controls

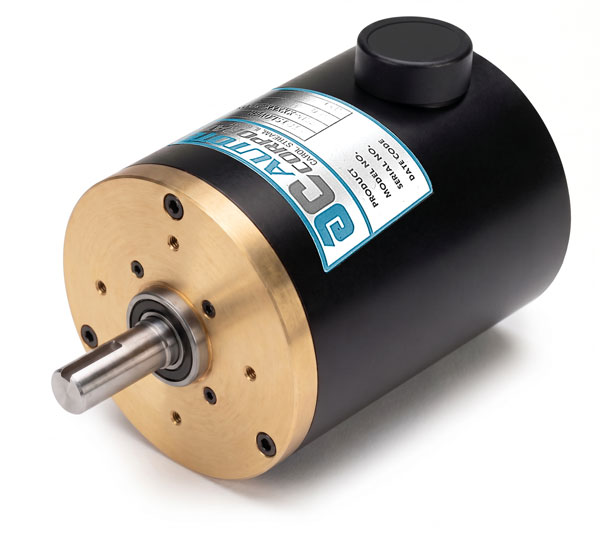

SAC-RL100-010
Resolver
FAST Shipping

2 Year Factory Warranty

$1550

Add to Cart

Same Day Shipping
If Ordered by 2PM CST

Or Call 630-668-3900 / Email:
to receive up to 20% credit towards your next resolver.


SAC-RL100-M11
Resolver
FAST Shipping

2 Year Factory Warranty

$1550

Add to Cart

Same Day Shipping
If Ordered by 2PM CST

Or Call 630-668-3900 / Email:
to receive up to 20% credit towards your next resolver.

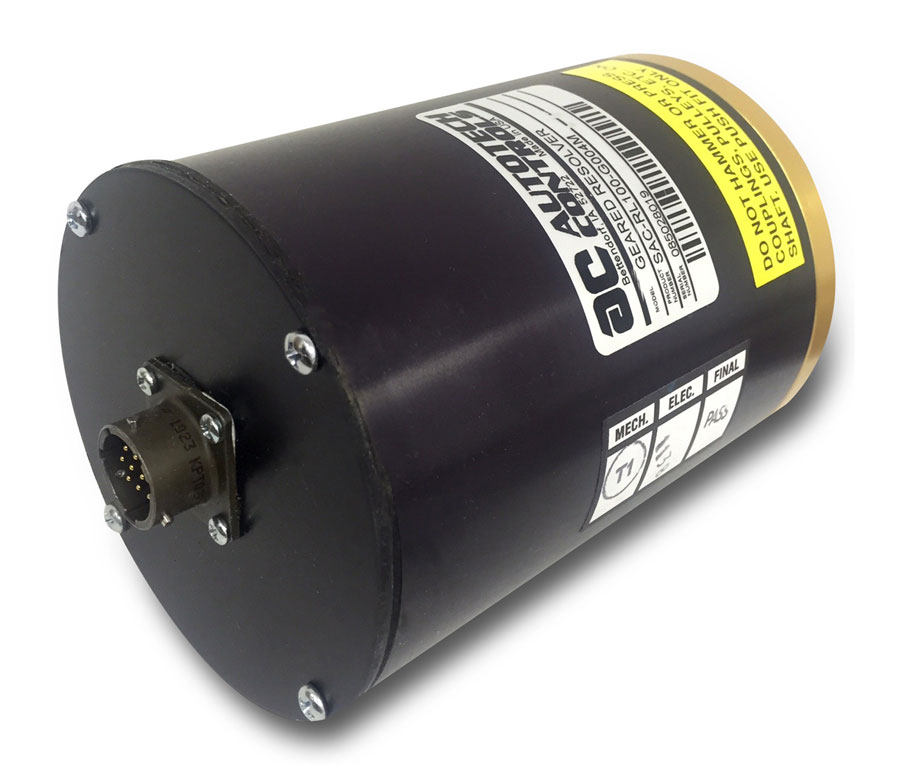

SAC-RL100-M19
Resolver
FAST Shipping

2 Year Factory Warranty

$1595

Add to Cart

Same Day Shipping
If Ordered by 2PM CST

Or Call 630-668-3900 / Email:
to receive up to 20% credit towards your next resolver.


Trade-In Option

You also have a trade-in option of getting a credit of 5 to 20% depending on the condition of the non-factory product you send back to us. This option depends on Autotech Control's evaluation of the product sent back. Call the number below to learn more.

Call 630-668-3900

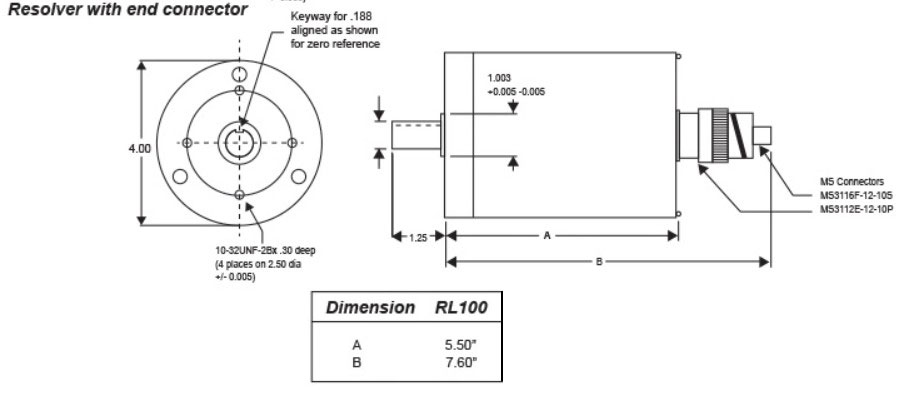

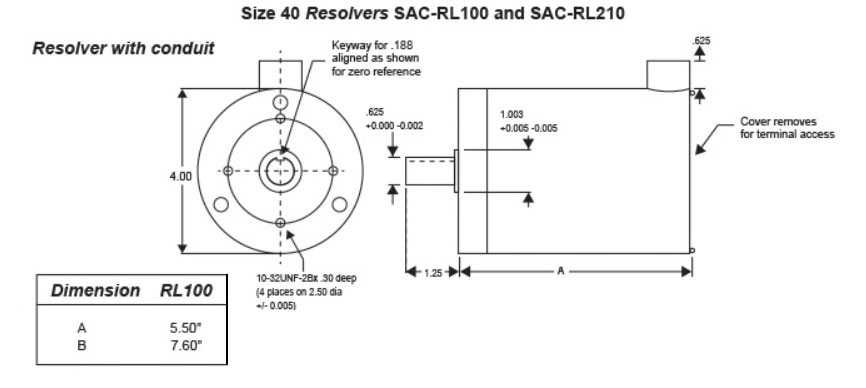

SAC-RL100 Dimensions
